Cube Stereo Hybrid 140 HPC Race 750 arancione brillante

TECHNICAL SPECIFICATIONS

BOSCH PERFORMANCE CX MOTOR

Efficient energy use

Optimal motor and transmission performance for tackling long, steep climbs.

Always at maximum power

Ideal for fast intermediate sprints and sudden changes of pace.

Reduced noise level

For quiet pedaling with high motor power at all pedaling frequencies.

Torque of 85 Nm

For powerful acceleration in a compact format.

Maximum assistance of 340%

For powerful thrust, extremely sporty riding and explosive sprints.

Maximum speed 25 km/h

Constant assistance up to 25 km/h, even on long mountain rides.

BOSCH KIOX 300 DISPLAY

Exciting features

The robust display is a smart companion for sporty rides, analyzing fitness data, and optimizing your training. Kiox 300 stays up to date thanks to wireless updates and is continuously enhanced via the eBike Flow app.

Easy to read, stylish design

Compact yet powerful, with a color screen that is perfectly readable day and night. Simple control via LED Remote, with intuitive animations and graphics.

A useful aid

With Walk Assist, you can count on real support when climbing hills. It clearly shows the remaining range for each riding mode.

Customizable positioning

The display mount can be adjusted to suit your needs.

eBike Flow app – Your customized eBike experience

Download new features and updates, customize your riding modes, record your activities (including synchronization with Apple Health for iPhone users), and get an overview of all your essential data.

FRAME

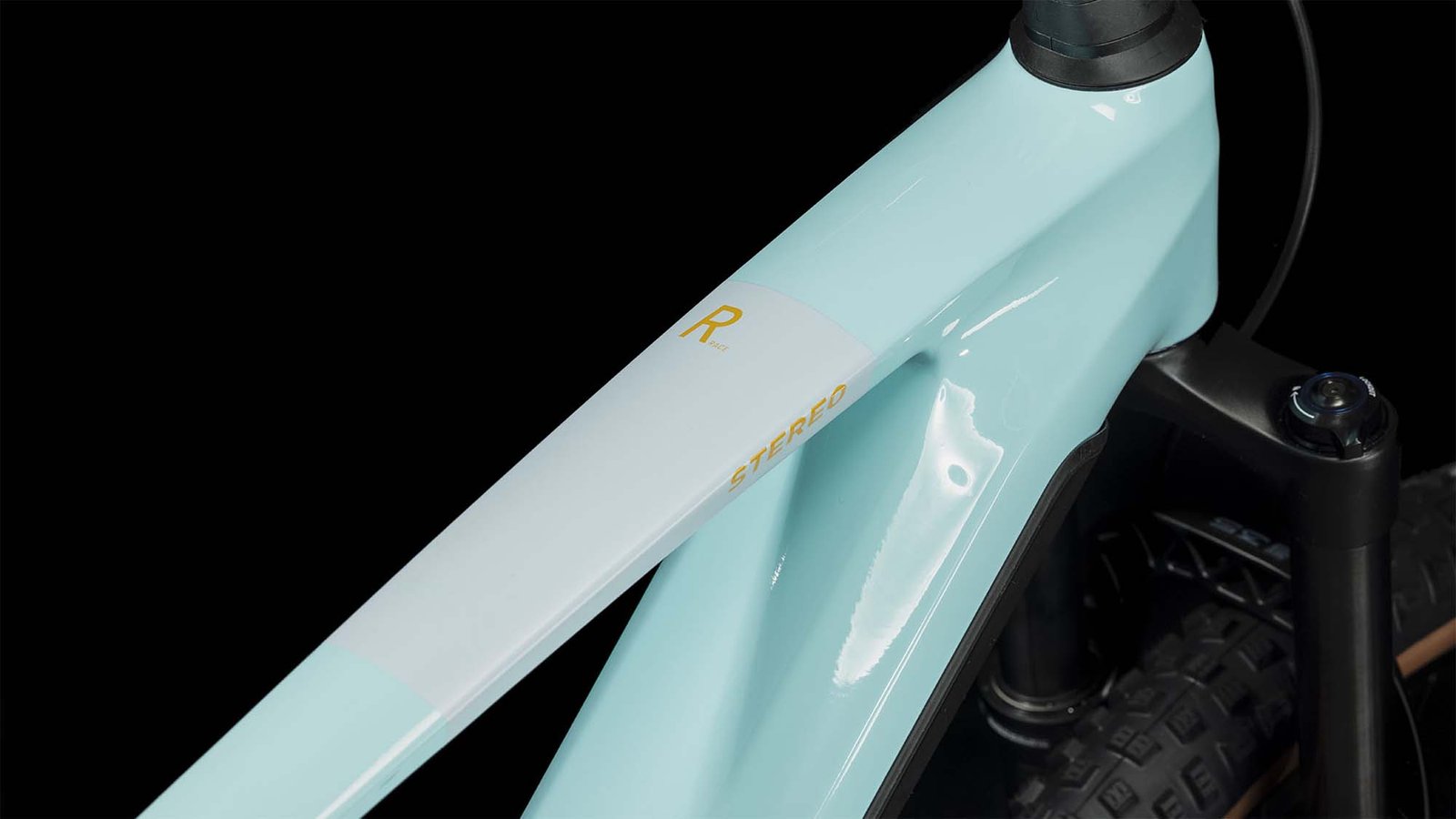

• Frame: C:62® Monocoque Advanced Twin Mold Technology, 6061 T6 aluminum rear triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, integrated battery, internal cable routing
• Sizes: Size Split: 27.5: S (16“) // 29: M (18”), L (20“), XL (22”)

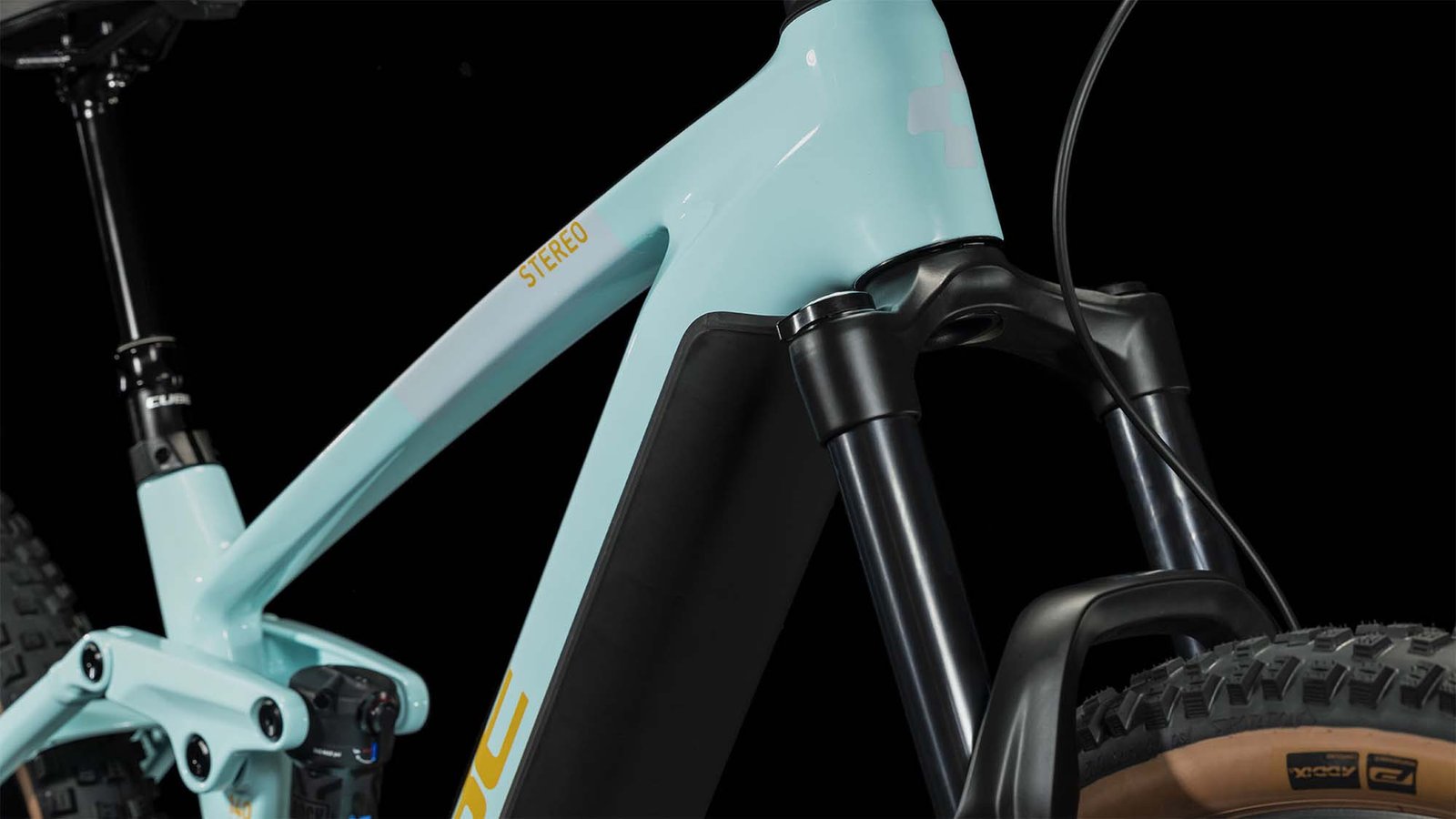

• Fork: RockShox 35 Silver TK Air, 150 mm, Lockout, eMTB approved

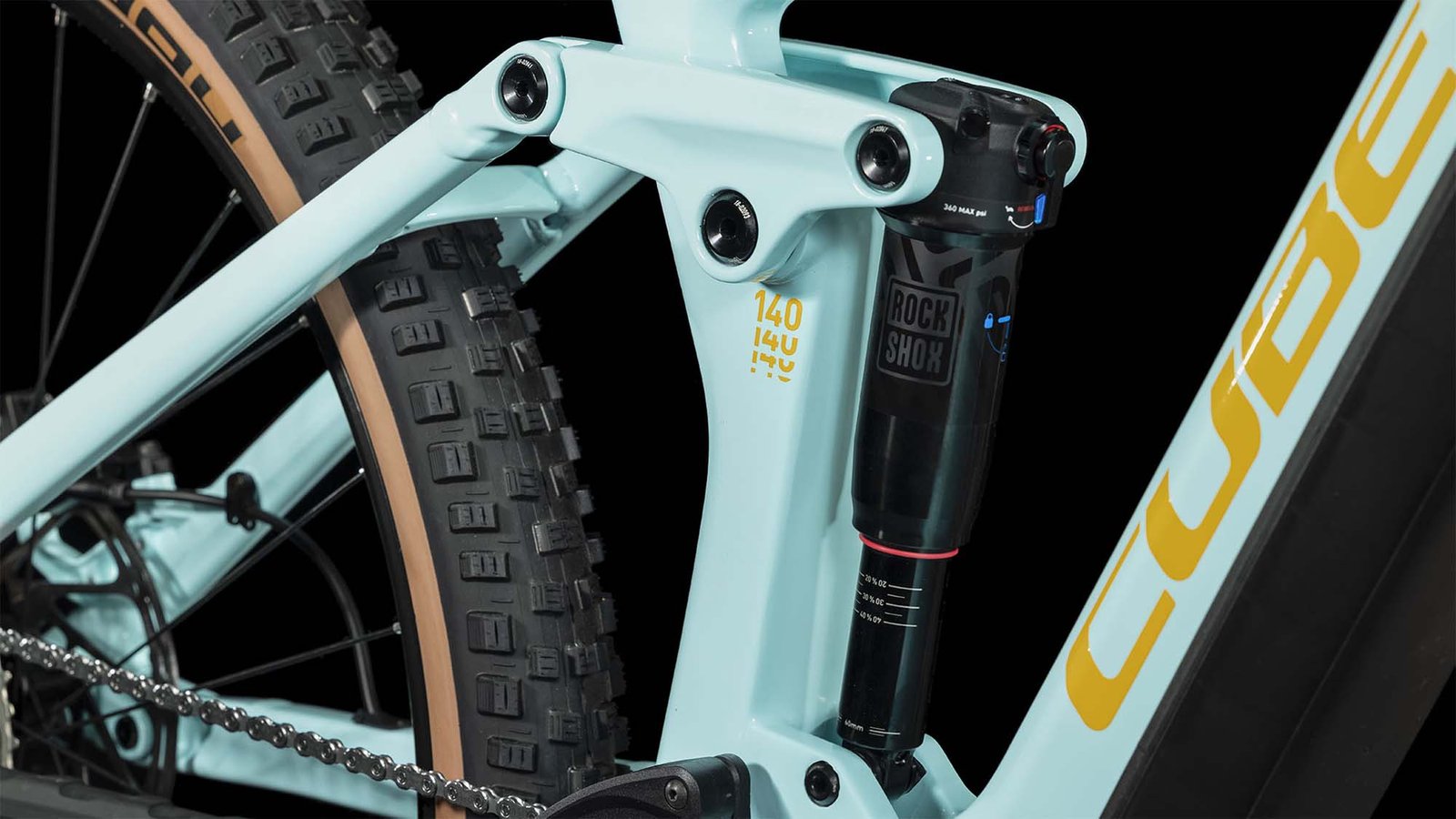

• Shock: RockShox Deluxe Select+, 205×60 mm (27.5: 185×55 mm), rebound adjustment, Trunnion mount, Lockout
• Headset: ACROS AZF-1035, ICR, BlockLock 120°, ZS56 mm

COMPONENTS

• Handlebar stem: CUBE Performance Stem E-MTB, 31.8 mm
• Handlebar: Newmen Evolution SL 318.25, 760 mm
• Grips: ACID React Pro
• Saddle: Natural Fit Venec
• Seatpost: CUBE Dropper Post, handlebar control, internal routing, 31.6 mm
• Seat clamp: CUBE Screwlock Semi Integrated, 34.9 mm

DRIVETRAIN

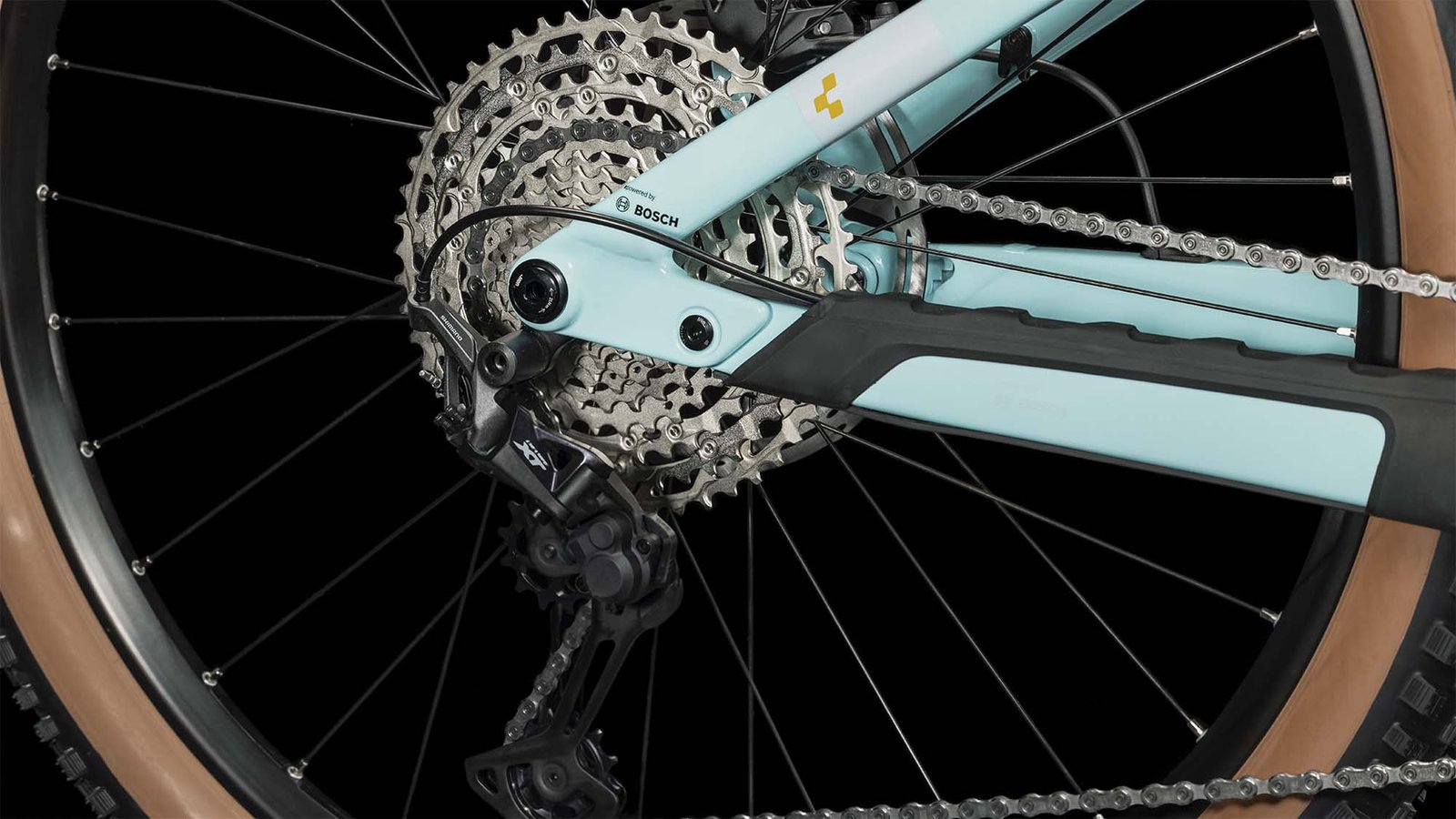

• Rear derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12 speeds
• Shift lever: Shimano Deore SL-M6100, Rapidfire-Plus
• Chain guide: Reverse Flip-Guide E-Chain Guide, direct mount, GEN4

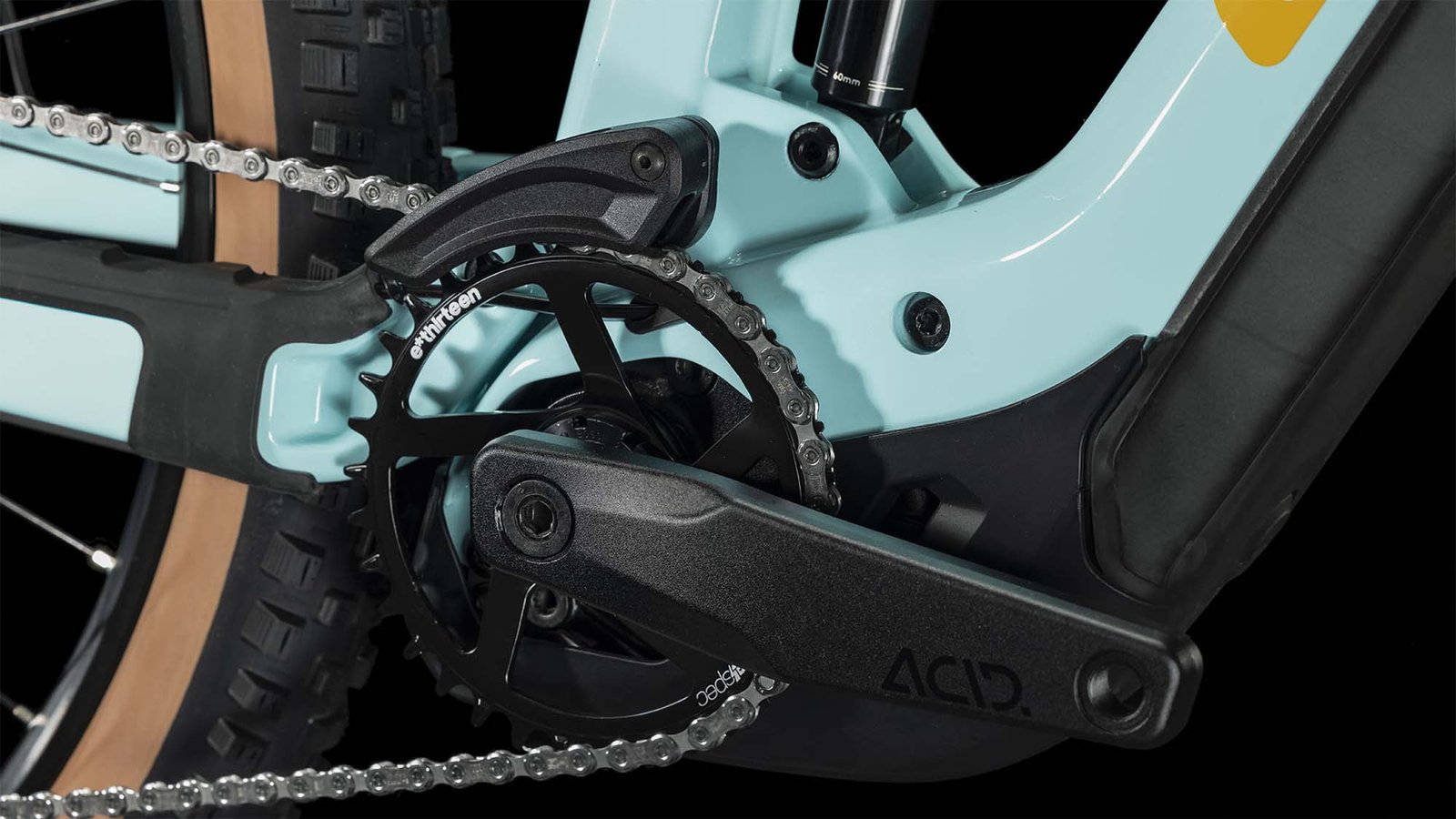

• Crankset: ACID E-Crank, 165 mm (27.5: 36T // 29: 34T)
• Cassette: Shimano Deore CS-M6100, 10-51T
• Chain: Shimano CN-M6100

E-BIKE SYSTEM

• Motor: Bosch Drive Unit Performance CX Gen4 (85 Nm) Cruise (250 W), Smart System
• Battery: Bosch PowerTube 750 Wh
• Charger: Bosch 4A
• Control: Bosch LED Remote
• Display: Bosch Kiox 300

WHEELS

• Rims: CUBE EX30, 32 holes, tubeless ready
• Front hub: Shimano HB-MT400-B, 15 mm, Boost, Centerlock
• Rear hub: Shimano FH-MT410-B, 12 mm, Boost, Centerlock
• Tires: Schwalbe Nobby Nic, PerfL, 2.6″

BRAKES

• Brakes: Sram DB8, hydraulic disc brakes (203/203 mm)

GENERAL

• Weight: 24.8 kg
• Note
  • 16“ = 27.5” wheels
  • 18“, 20”, 22“ = 29” wheels
• Bike type: full suspension e-MTB
• User: Unisex
• Frame material: Carbon
• Model year: 2023
• Battery capacity: 750 Wh
• Motor: Bosch Performance CX
• Display: Bosch Kiox 300
